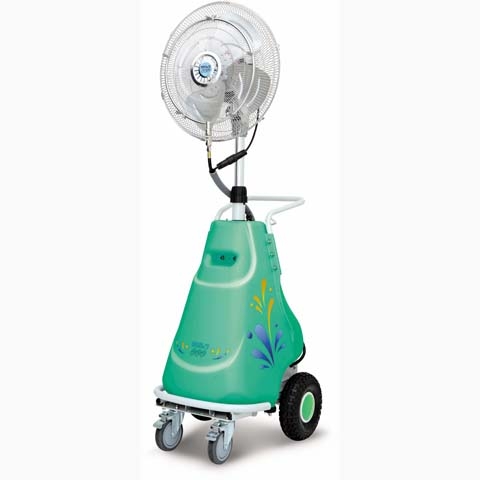

38 L Water Tank
Enlarge
Enlarge
Model No : WMF-10005-S
Product Description

Working Pressure:70 kgf/cm2 | Mist Volume:0.28 L/Min.

Product Introduction

COOLS & FRESHENS THE AIR!

  • Digital control panel with programmable function.
  • Circuit breaker for electrical safety.
  • Strong 18” portable misting fan for 200 CBM/min output with 3-speed variable pitch.
  • Adjustable height up to 185 cm.
  • 38 liter water tank for 2 hours of continuous misting.
  • A 90 degree rotation angle with adjustable tilt positions for maximum cooling range.
  • Tri-filter system: Filters at the tank, mist line and nozzles.
  • Wheel lock for greater safety and stability.
  • Hose connector inlet with float valve shutoff to prevent overflowing.

     STAINLESS STEEL FAN MESH
     CE CERTIFIED

Model Motor Power Power Mist Volume Nozzles Working Pressure
Volt Hz ø R.P.M KW L/min Gpm 0.15mm kgf/cm2 p.s.i
WMF-10005-5S 230 50 1 1415 0.31 0.28 0.07 6 70 1000
WMF-10005-6S 110 60 1 1720 0.40 0.28 0.07 6 70 1000
WMF-10005-6S 220 60 1 1720 0.36 0.28 0.07 6 70 1000

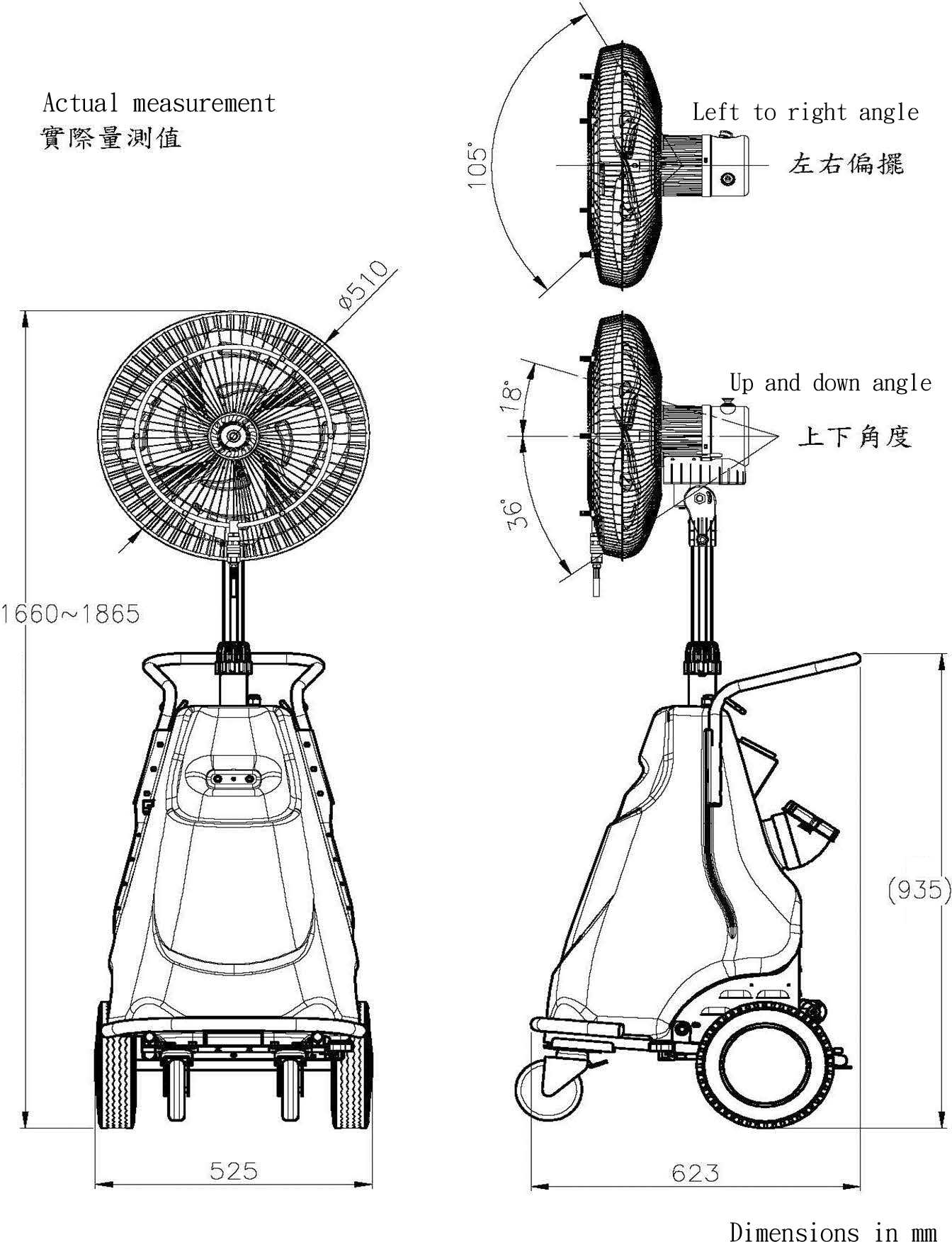

Dimensions: 85x56x114 cm Weight: 44 kgs
Applications
★ Residential cooling
★ Industrial cooling
★ Commercial cooling
★ Agriculture and greenhouse use
★ Special landscaping effects
★ Dust/odor control
★ Air condition condenser pre-cooling
★ Epidemic prevention
★ Disinfection
