WB-1830M & WB-1840M
Product Description
Working Pressure: 70 bar | Max Flow Rate: 34 / 41 L/min | Motor Power: 7.5 HP (3-Phase)
Product Introduction

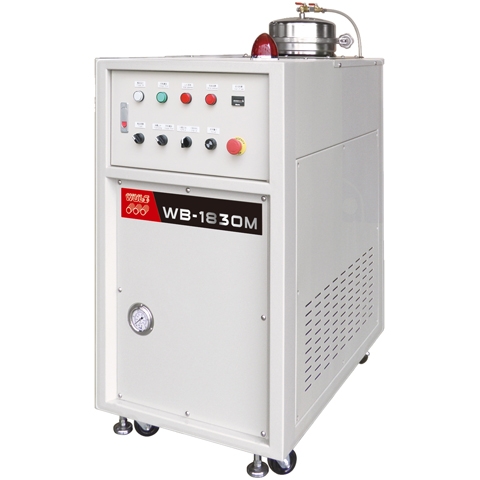

WB-1830M & WB-1840M High-Pressure Through-Spindle Coolant System (70 Bar / 1,000 PSI)
The WULI WB-1830M / WB-1840M is an industrial-grade Through-Spindle Coolant (TSC) system engineered for high-precision CNC machining. Built with a low-vibration, high-durability ceramic plunger sleeve pump manufactured 100% in Taiwan, it delivers a steady 70 Bar (1,000 PSI) pressure output. By blasting through heat barriers directly at the cutting point, it flushes chips instantly, extends tool life, and accelerates production throughput.
- 70 Bar / 1,000 PSI Constant Pressure: Directs ultra-high pressure coolant straight to the cutting zone for instant chip breaking and superior thermal control.
- High-Displacement Dual Flow Options: 34 L/min (9.0 GPM) and 41 L/min (10.8 GPM) models engineered to power diverse tool orifice diameters.
- Heavy-Duty Ceramic Plunger Pump: Industrial wear-resistant ceramic sleeves and custom packings ensure low vibration, quiet operation, and long service life.
- Vibration-Damping Belt Drive: Belt-driven architecture absorbs motor shock to protect machine spindles and ensure smooth fluid delivery.
- Automated M-Code Pressure Relief: Instantly depressurizes during tool changes to eliminate tool setter errors and prevent messy coolant splashback.
- Universal Fluid Compatibility: Performs reliably with both water-soluble and neat oil coolants, keeping shop floors clean with anti-drip circuitry.
Model Selection Guide
Industrial Design & Smart Controls
Industrial Plunger Pump Engineering
- Smooth Belt Drive: Absorbs operational shock, maintaining consistent fluid delivery for micro-finish accuracy.
- Ceramic Plunger Sleeve Technology: Exceptional resistance to abrasion and chemical corrosion, drastically extending seal longevity.
- Triplex Fixed-Displacement Design: Delivers stable volumetric output regardless of fluid viscosity or temperature fluctuations.
- Compact Footprint: Sub-tank-free configuration simplifies installation in space-constrained factory layouts.
Smart Safeguards & Automation
- Filter Clogging Early Warning: Triggers immediate alerts when inlet filters clog, protecting high-cost spindle components.
- Multi-Channel Versatility: Available in single-channel or dual-channel configurations to match your tooling needs.
- Zero-Drip Nozzle Circuit: Prevents fluid leakage during tool changes and workpiece loading, maintaining clean shop environments.
Specification
- Filtration Options: Factory standard is fitted with a 5µm high-precision filter bag. 25µm and 50µm options are available upon request.
- Customization: Motor voltage and power frequency can be fully customized for global grid compliance (e.g., US 460V/60Hz, EU 400V/50Hz).
- * Specifications are subject to change without prior notice due to continuous product improvements.
- Filtration Options: Factory standard is fitted with a 5µm high-precision filter bag. 25µm and 50µm options are available upon request.
- Customization: Motor voltage and power frequency can be fully customized for global grid compliance (e.g., US 460V/60Hz, EU 400V/50Hz).
- * Specifications are subject to change without prior notice due to continuous product improvements.
Compatible CNC Machinery & Materials
Supported CNC Equipment
Vertical & Horizontal Machining Centers (VMC/HMC), CNC Lathes, Turn-Mill Multitasking Machines, Swiss-Type Automatic Lathes, Gantry Mills, and Gun Drilling Machines.
Workpiece Material Compatibility
Titanium Alloys, Inconel / Nickel-based Superalloys, Stainless Steel (304/316), Tool & Die Steels, Alloy Steels, Aluminum Alloys, and other tough-to-machine metals.
High-Performance Machining Scenarios
Deep-Hole Drilling & Gun Drilling
70 Bar (1,000 PSI) fluid stream reaches the drill tip directly, instantly breaking stringy chips and evacuating them out of high aspect-ratio deep holes to prevent tool packing and breakage.
Blind-Hole & Micro-Hole Machining
Powerful hydraulic pressure flushes trapped swarf completely out from cavity bottoms, preventing chip re-cutting, severe tool wear, and internal wall scoring.
High-Speed Milling & Rigid Tapping
Delivers localized thermal shock reduction and high-lubricity cooling to eliminate built-up edge (BUE) and thermal distortion, enhancing thread precision and surface finish.
Precision Components & Automated Continuous Production
Standard 5µm filtration coupled with automatic M-code pressure relief guarantees clean fluid delivery and splash-free tool changes, enabling lights-out unattended manufacturing.
- 20% to 50% Higher Feed Rates: Significantly boosts cutting speeds and reduces overall cycle times per part.
- 100%+ Tool Life Extension: Superior cooling and chip evacuation prevent micro-chipping and heat annealing, doubling tool longevity.
- Flawless Surface Integrity: Immediate chip removal protects workpiece surfaces from scratches, minimizing costly secondary polishing operations.
System Accessories & Consumables
 |
B-01 / No. 2 Filter Mesh
Spec.: 5 µm 25 µm 50 µm
|
 |
B-02 / Oil Filter Cartridge (Inlet)
Spec.: PT 1-1/2"
|
 |
B-03 / Filter Cartridge (2nd Stage)
Spec.: Φ70 x 195L
|
 |
B-04 / Paper Filter
Spec.: 15 µm 30 µm 50 µm
|
