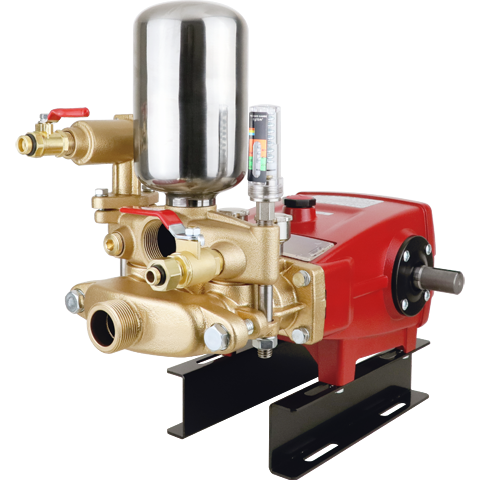

Power Sprayer
Product Description
Pressure: 20~50 kgf/cm2 | Suction Volume: 31~61.5 Liter/Minute
Product Introduction
- Spheroidal-graphite cast iron manifold with anti-rust surface treatment can withstand chemicals erosion and prolong service life.
- Industrial ceramic pressure valve and valve seat privide stable pressure and durability.
- Stainless steel pistons with special surface treatment can endure the chemicals erosion.
- Automatic pressure release device releases pressure to save energy when the spray gun is off.
- Pump Pulley 10B2*24*5
- Suction Hose Assy. 1-1/4"*9FT
- Overflow Hose Assy. 1"*9FT
- Inlet Filter & Filter Socket
- Tool Kits & Spare Parts
Specification
| Suction Volume (L/Min.) | Operating Pressure (kgf/cm2) | Revolution (r.p.m.) | |||||
| 20 | 35 | 50 | |||||
| Motor | Engine | Motor | Engine | Motor | Engine | ||
| 31.0 | 1.6 | 2.4 | 2.8 | 4.2 | 4.0 | 6.0 | 430 |
| 36.0 | 1.9 | 2.8 | 3.2 | 5.0 | 4.6 | 7.0 | 500 |
| 54.5 | 2.8 | 4.2 | 4.8 | 7.4 | 750 | ||
| 61.5 | 3.0 | 4.8 | 850 | ||||
| Dimensions: 47x33x48 cm | Weight: 24/25 kgs | ||||||
| Suction Volume (L/Min.) | Operating Pressure (kgf/cm2) | Revolution (r.p.m.) | |||||
| 20 | 35 | 50 | |||||
| Motor | Engine | Motor | Engine | Motor | Engine | ||
| 31.0 | 1.6 | 2.4 | 2.8 | 4.2 | 4.0 | 6.0 | 430 |
| 36.0 | 1.9 | 2.8 | 3.2 | 5.0 | 4.6 | 7.0 | 500 |
| 54.5 | 2.8 | 4.2 | 4.8 | 7.4 | 750 | ||
| 61.5 | 3.0 | 4.8 | 850 | ||||
| Dimensions: 47x33x48 cm | Weight: 24/25 kgs | ||||||
Applications:
- Power Spraying: Ideal for spraying agricultural chemicals and fertilizers on farms, greenhouses and orchards.
- Water Transport: Capable of pumping liquids up to 3 km over flat ground, or 400 m at a 60 degree incline.
- Irrigation: Provide water to crops in dry areas.
- Disinfectant Spraying: Used for spraying chemical disinfectant for sanitary applications.
