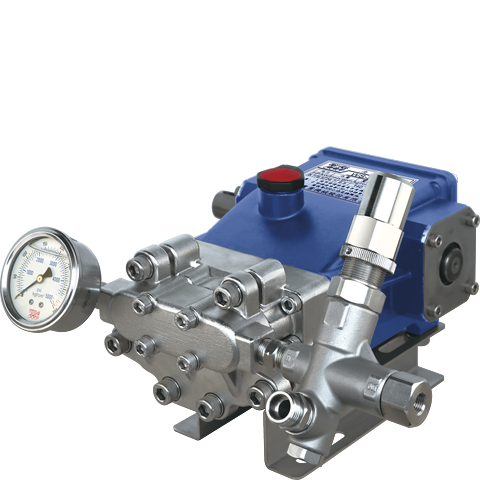

Hot Water High Pressure Pump
Product Description
Pressure: 2000 p.s.i. (140 kgf/cm2) | Suction Volume: 24.7 Liter/Minute
Product Introduction
HOT WATER HIGH PRESSURE PUMP
Engineered for high-temperature applications.
The WULI Hot Water Pump operates reliably with water temperatures up to 85°C, delivering a consistent pressure of 2000 psi for demanding industrial, cleaning, and processing tasks.
Its dual-bearing system and heat-resistant seals ensure quiet, durable, and precise performance under continuous operation.
Available in Stainless Steel (WTS Series) and Brass (WT Series) manifolds to meet various process requirements.
Heat-resistant. Pressure-stable. Built to last — WULI sets the standard in high-pressure technology.
Specification
| Model | Suction Volume | Working Pressure | Required Power | Revolution | |||
| L/Min. | gpm | kgf/cm2 | psi | HP | KW | rpm | |
| WTS-2024 | 24.7 | 6.5 | 140 | 2000 | 8.7 | 6.5 | 1750 |
| Dimensions: 36x32x33 cm | Weight:12kg (Pump weight only) | ||||||
| Model | Suction Volume | Working Pressure | Required Power | Revolution | |||
| L/Min. | gpm | kgf/cm2 | psi | HP | KW | rpm | |
| WTS-2024 | 24.7 | 6.5 | 140 | 2000 | 8.7 | 6.5 | 1750 |
| Dimensions: 36x32x33 cm | Weight:12kg (Pump weight only) | ||||||
Key Features
-
High-Temperature Resistance
Specially designed sealing and thermal-resistant materials ensure long-term stability in 85°C environments. -
Powerful Pressure Output
Operating pressure up to 2000 psi (140 kgf/cm²) provides strong, steady flow for precise cleaning and process applications. -
Advanced Bearing & Cooling System
Dual-bearing structure and internal cooling lubrication minimize heat generation and wear, extending pump lifespan. -
Manifold Options
-
WTS Series: Stainless Steel Manifold — superior corrosion resistance for harsh or chemical environments.
-
WT Series: Brass Manifold — cost-effective, reliable performance for general hot-water use.
-
-
Precision Engineering
Low vibration, low noise, and high operational stability, even under continuous duty.
Applications
-
Industrial hot-water cleaning systems
-
Food & beverage CIP (Clean-in-Place) sanitation
-
Automotive and mechanical parts degreasing
-
Chemical and process equipment maintenance
