SST Pistion & Cast Iron Air Chamber
Enlarge
Enlarge

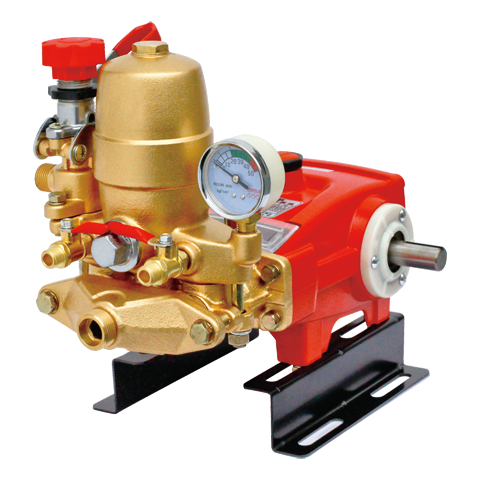

Model No : W-25B
Product Description

Pressure: 20~50 kgf/cm2 | Suction Volume: 7.5~15.5 Liter/Minute

Product Introduction
  • Spheroidal-graphite cast iron manifold with anti-rust surface treatment can withstand chemicals erosion and prolong service life.
  • Industrial ceramic pressure valve and valve seat privide stable pressure and durability.
  • Stainless steel pistons with special surface treatment can endure the chemicals erosion.
Export Standard Accessories:
  1. Pump Pulley 7A2*19*5
  2. Suction Hose Assy. 3/4"*9FT
  3. Overflow Hose Assy. 1/2"*9FT
  4. Inlet Filter & Filter Socket
  5. Tool Kits & Spare Parts
Applications:
  • Power Spraying: Ideal for spraying agricultural chemicals and fertilizers on farms, greenhouses and orchards.
  • Water Transport: Capable of pumping liquids up to 3 km over flat ground, or 400 m at a 60 degree incline.
  • Irrigation: Provide water to crops in dry areas.
  • Disinfectant Spraying:  Used for spraying chemical disinfectant for sanitary applications.
Suction Volume   (L/Min.)  Operating Pressure (kgf/cm2 Revolution  (r.p.m.)
20 35 50
 Motor   Engine   Motor   Engine   Motor   Engine
7.5   0.4    0.6   0.7    1.1   1.0    1.5 430
9.5   0.5    0.8   0.9    1.3   1.2    1.9 520
11.5   0.6    1.0   1.0    1.6   1.5    2.3 650
15.5   0.8    1.2   1.4    2.1   2.5    3.0 850

Dimensions: 36x28x32 cm Weight: 12/13 kgs
