Starting from July 2025, we will launch new WN misting products. The old series will discontinued after they are sold out. Thank you for your understanding.



Power Sprayer

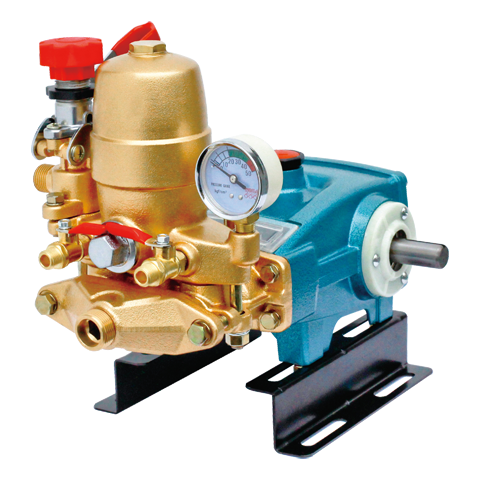

W-25BC power sprayer ceramic plunger heavy duty high pressure pump with cast iron pulsation dampener for agricultural spraying and high pressure cleaning
Enlarge
  • W-25BC power sprayer ceramic plunger heavy duty high pressure pump with cast iron pulsation dampener for agricultural spraying and high pressure cleaning
W-25BC power sprayer ceramic plunger heavy duty high pressure pump with cast iron pulsation dampener for agricultural spraying and high pressure cleaning
Enlarge
Model No : W-25BC
Inquiry
Product Description
Pressure: 20–50 bar (300–700 PSI) Suction Volume: 7.5–18 L/min (2–4.8 GPM)
Product Introduction
Key Features & Performance Advantages
  • Durable Ceramic Plunger Sleeve:  Equipped with high-performance ceramic plunger sleeves engineered for superior wear resistance, extended service life, and reliable operation under demanding agricultural conditions.
  • Cast Iron Air Chamber:  Features a robust cast iron air chamber designed to absorb pressure pulsations effectively, ensuring steady discharge flow and enhanced structural durability during high-pressure spraying.
  • High-Efficiency Performance:  Delivers stable pressure and flexible flow rates suitable for organic crop spraying, greenhouse fertigation, and general washing applications.
Standard Accessories Included
  • Aluminum Pump Pulley 7" A2 x 19mm bore (5mm keyway)
  • Suction Hose Assembly (3/4" x 2.7m / 9ft)
  • Overflow / Bypass Hose Assembly (1/2" x 2.7m / 9ft)
  • Suction Filter (S-42)
  • Export Standard: Spare Packing Kit (V-Packings & Valve Packings)
Commercial Terms & Supply Chain: • MOQ: No MOQ required (Flexible sample & small-batch orders welcome).
• Lead Time: 7 – 60 working days (subject to stock availability).
• OEM / ODM: Custom branding, colorways, and pulley dimensions available.
12-Month Factory Warranty & After-Sales Support • Coverage: 12-month warranty against material and manufacturing defects from date of receipt.
• Fast Claims: Submit photo/video evidence for rapid evaluation and immediate replacement parts or repair support.
• For full warranty terms and conditions, please consult our sales agreement.
PERFORMANCE SPECIFICATIONS MODEL: W-25BC
Suction Volume
(L/min)		Working Pressure (kgf/cm²)Revolution
(R.P.M.)
20 35 50
HP kW HP kW HP kW
7.5 0.4 0.3 0.7 0.5 1.0 0.75 430
9.5 0.5 0.37 0.9 0.7 1.2 0.9 520
11.5 0.6 0.5 1.0 0.75 1.5 1.1 650
15.5 0.8 0.6 1.4 1.1 2.0 1.5 850
18.0 1.0 0.75 1.6 1.2 - - 1000
Dimensions: 35 x 28 x 32 cm Weight: 12 / 13 kg
* SPECIFICATION IS SUBJECT TO CHANGE WITHOUT NOTICE FOR THE PURPOSE OF IMPROVEMENT OF THE PRODUCT.
DIMENSIONAL DRAWING
W-25BC power sprayer dimensions drawing
Key Applications & Operational Advantages
Agricultural Crop & Orchard Spraying
Delivers a continuous and stable pressure flow to ensure fine mist atomization, enabling even chemical coverage across dense crop canopies and fruit trees.
Greenhouse Fertigation & Pest Control
Corrosion-resistant fluid path components safely handle liquid fertilizers and agricultural chemicals, making it ideal for automated or manual greenhouse spraying operations.
Livestock Farm Sanitation & Disinfection
High-pressure output enables thorough washdown and chemical fogging in poultry houses, barns, and agricultural facilities to maintain strict biosecurity standards.
Industrial & Pipeline Pressure Testing
Capable of maintaining consistent high working pressure (up to 50 kgf/cm²), suitable for hydrostatic pipe testing and heavy-duty equipment washdown.
Flexible System Configurations & Compatible Accessories
Flexible Power Matching
Easily coupled with a 0.4 - 2.0 HP electric motor for quiet greenhouse use, or a portable gasoline engine for remote field spraying without grid power.
High-Pressure Spray Hoses & Reels
Fully compatible with 8.5mm to 10mm high-pressure agricultural hoses and manual/automatic hose reels for extended spraying range.
Professional Spray Guns & Nozzles
Seamlessly integrates with adjustable misting guns, long-range orchard lances, or multi-nozzle spray booms for targeted application.
Base Frame Options
Standard Flat Base Frame provided for stationary installations. Heavy-duty Bus Frames and U-Shape Mobile Carts are also available for bulk orders (MOQ required).
High-pressure power sprayer applications: Orchard crop spraying and livestock farm washdown
High-pressure power sprayer optional accessories: High-pressure spray hoses, suction strainers, flat engine frames, pulley belt guards, pressure gauges, and hose couplings
Professional power sprayer spray gun accessories: Long agricultural spray lances, heavy-duty washdown guns, fan nozzle sprayers, and adjustable spray wands
High-pressure hose fittings and accessories: Quick connectors, brass ball valves, ceramic spray nozzles, and anti-twist swivel joints for power sprayers
