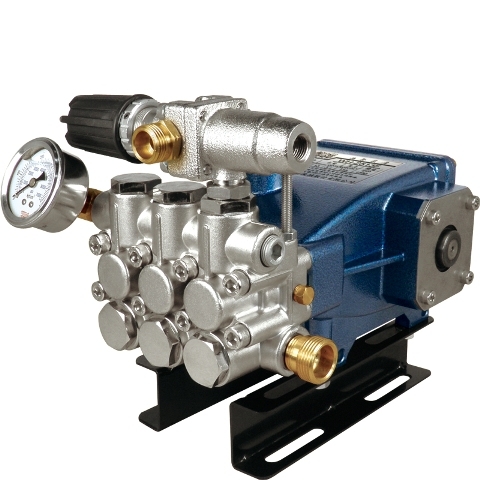

WH-2011F1 Industrial High Pressure Plunger Pump

WH-2011F1 is an industrial-grade high pressure plunger pump engineered for continuous-duty operation. It is designed for demanding industrial environments including cleaning systems, misting systems, agricultural spraying and industrial cooling circulation applications.

Performance Specifications

• Maximum Pressure: 2000 PSI (140 bar)
• Flow Rate: 11 L/min
• Speed: 1750 RPM industrial standard
• Operation: Continuous Duty (24/7 industrial use)

Product Features

• Stable high-pressure output design ensures consistent pressure and flow performance under continuous operation.
• Engineered for 1750 RPM industrial standard speed, optimized for long-term continuous-duty operation.
• One-piece brass manifold construction provides excellent corrosion resistance and long-term structural stability.
• High-strength aluminum crankcase combined with precision forged crankshaft improves mechanical rigidity and efficiency.
• High-density ceramic plungers deliver exceptional wear resistance and extended service life under high-pressure conditions.
• High-precision sealing system minimizes leakage risk and ensures stable high-pressure operation.
• Adjustable pressure regulating valve allows precise pressure control and improves system efficiency.

Engineering Advantages

The WH-2011F1 is designed with industrial-grade mechanical architecture to ensure long-term reliability under continuous high-pressure operation. Its structural design reduces mechanical fatigue, improves system stability, and minimizes maintenance requirements.

It is suitable for system integrators and OEM manufacturers requiring stable performance in demanding industrial fluid handling applications.

Applications

• Industrial high-pressure cleaning systems
• Automatic misting and atomization systems
• Evaporative cooling and temperature control systems
• Agricultural spraying and irrigation systems
• Industrial surface cleaning equipment
• Pipeline pressure testing systems
• Industrial cooling circulation systems (including EDM cooling support)

Engineering Benefits

The WH-2011F1 is designed with industrial-grade mechanical architecture optimized for continuous-duty operation, ensuring stable pressure output, reduced maintenance requirements, and high system reliability in demanding applications.

Export Standard Accessories

• Pressure gauge for real-time system pressure monitoring
• Unloader valve to regulate working pressure and release pressure during idle, protecting the pump from overload
• 3/4" suction hose (10 ft / 3 m) for stable water intake
• Inlet suction filter with filter socket to prevent particulate contamination
• 1/2" overflow / bypass hose (9 ft / 2.7 m) for system pressure return flow
• Pump pulley 4A2*24*8 for mechanical power transmission and motor coupling

The complete standard accessory package is designed for turnkey system integration, allowing immediate installation and operation with reduced engineering setup time. This ensures stable performance, simplified installation, and improved system reliability for OEM and industrial applications.

FAQ

Is the WH-2011F1 suitable for continuous-duty operation?

Yes. It is designed for 24/7 continuous-duty industrial operation.

Can it be used in industrial cleaning systems?

Yes. It is widely used in high-pressure cleaning and industrial washing applications.

Do you provide OEM/ODM customization?

Yes. OEM/ODM customization and system integration support are available.
