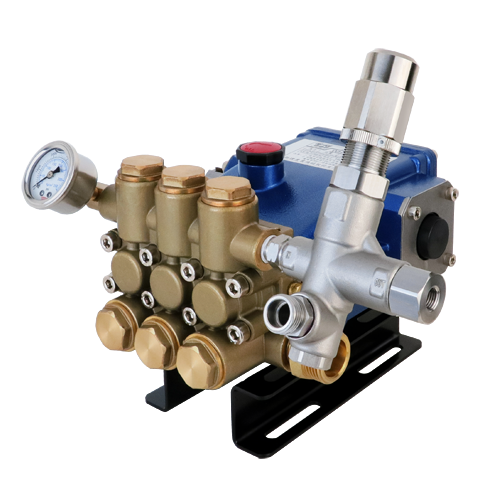

WH-2124F1 Industrial High Pressure Plunger Pump

WH-2124F1 is an industrial-grade high pressure plunger pump engineered for continuous-duty operation. It is designed for stable performance in industrial cleaning systems, misting systems, agricultural spraying, and industrial cooling circulation applications.

Performance Specifications

• Maximum Pressure: 2000 PSI (140 bar)
• Flow Rate: 23.9 L/min (6.3 gpm)
• Speed: 1750 RPM industrial standard
• Operation: Continuous Duty (24/7 industrial operation)

Product Features

• Stable high-pressure output for consistent performance under continuous operation
• Designed for 1750 RPM industrial standard motor systems
• One-piece brass manifold structure for corrosion resistance and durability
• High-strength aluminum crankcase for improved mechanical rigidity
• Precision forged crankshaft ensures stable power transmission and long service life
• High-density ceramic plungers for excellent wear resistance under high pressure
• Advanced sealing system reduces leakage and improves operational stability

Engineering Advantages

The WH-2124F1 is engineered with industrial-grade mechanical architecture to ensure long-term reliability in continuous-duty applications. The structural design minimizes mechanical stress, enhances efficiency, and reduces maintenance requirements.

It is suitable for OEM manufacturers and system integrators requiring stable and repeatable pump performance in industrial fluid handling systems.

Applications

• Industrial high-pressure cleaning systems
• Automatic misting and spray systems
• Evaporative cooling systems
• Agricultural spraying and irrigation systems
• Industrial surface washing equipment
• Pipeline pressure testing systems
• Industrial cooling circulation systems

Engineering Benefits

Designed for continuous-duty industrial environments, WH-2124F1 provides stable pressure output, improved energy efficiency, and reduced maintenance downtime, ensuring reliable system operation in demanding applications.

Export Standard Accessories

• Pressure gauge for real-time monitoring
• Safety valve for overpressure protection
• 1" inlet hose assembly (10 ft / 3 m) for stable water intake
• Suction filter with filter socket to prevent particulate contamination
• 1/2" bypass/overflow hose assembly (9 ft / 2.7 m) for system pressure return flow
• Pump pulley (4-1/2B2*24*8) for motor coupling and power transmission

The complete accessory package is designed for turnkey system integration, enabling fast installation and stable operation in OEM and industrial applications.

FAQ

Is the WH-2124F1 suitable for centralized high-pressure cooling systems (TSC application)?

Yes. The WH-2124F1 is suitable for centralized high-pressure cooling (TSC) systems, including industrial cooling circulation, discharge cooling, and equipment temperature control applications. It provides stable pressure and continuous-duty performance.

Can it be used in industrial cooling circulation systems?

Yes. This pump is commonly applied in industrial cooling circulation systems where stable flow and pressure are required for heat dissipation and process temperature control.

Is it suitable for EDM or machining cooling applications?

Yes. The WH-2124F1 can be used in EDM cooling support systems and machining process cooling, helping maintain stable thermal conditions during continuous operation.

Do you support OEM / system integration for cooling systems?

Yes. OEM and ODM customization is available. The pump can be configured for centralized cooling systems, industrial temperature control systems, and OEM machine integration.
