Starting from July 2025, we will launch new WN misting products. The old series will discontinued after they are sold out. Thank you for your understanding.



Power Sprayer

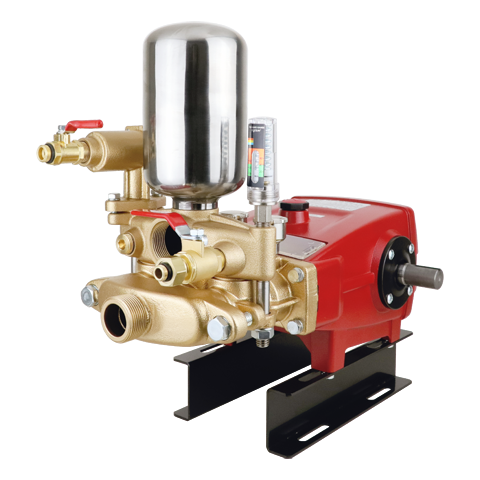

WL-51ASB2 power sprayer stainless steel plunger high flow high pressure pump with auto pressure release system for continuous operation
Enlarge
  • WL-51ASB2 power sprayer stainless steel plunger high flow high pressure pump with auto pressure release system for continuous operation
WL-51ASB2 power sprayer stainless steel plunger high flow high pressure pump with auto pressure release system for continuous operation
Enlarge
Model No : WL-51ASB2
Inquiry
Product Description

Pressure: 20~50 kgf/cm2 | Suction Volume: 29.5~58 Liter/Minute

Product Introduction
  • Spheroidal-graphite cast iron manifold with anti-rust surface treatment can withstand chemicals erosion and prolong service life.
  • Industrial ceramic pressure valve and valve seat privide stable pressure and durability.
  • Stainless steel pistons with special surface treatment can endure the chemicals erosion.
  • Automatic pressure release device releases pressure to save energy when the spray gun is off.
Export Standard Accessories:
  1. Pump Pulley 10B2*24*5
  2. Suction Hose Assy. 1-1/4"*9FT
  3. Overflow Hose Assy. 3/4"*9FT
  4. Inlet Filter & Filter Socket
  5. Tool Kits & Spare Parts
Suction Volume
(L/Min.)		 Working Pressure (kgf/cm2) Revolution
(r.p.m.)
20 35 50
HP kW HP kW HP kW
29.5 1.5 1.1 2.5 1.9 3.7 2.8 430
34.0 1.7 1.3 3.0 2.2 4.3 3.2 500
48.0 2.5 1.9 4.2 3.1 700
58.0 3.0 2.2 850
Dimensions: 47x36x48 cm Weight: 24/25 kgs
*THE SPECIFICATION IS SUBJECT TO CHANGE WITHOUT NOTICE FOR THE PURPOSE OF IMPROVEMENT OF THE PRODUCT.
WL-51ASB2 power sprayer dimensions drawing
Applications:
  • Power Spraying: Ideal for spraying agricultural chemicals and fertilizers on farms, greenhouses and orchards.
  • Water Transport: Capable of pumping liquids up to 3 km over flat ground, or 400 m at a 60 degree incline.
  • Irrigation: Provide water to crops in dry areas.
  • Disinfectant Spraying:  Used for spraying chemical disinfectant for sanitary applications.
power sprayer used for agricultural spraying and pig farm cleaning operations
power sprayer optional accessories including spray hose filter flat frame belt guard pressure gauge and coupling
power sprayer optional accessories including various spray guns
power sprayer optional accessories including connector, nozzle, ball cock and union
