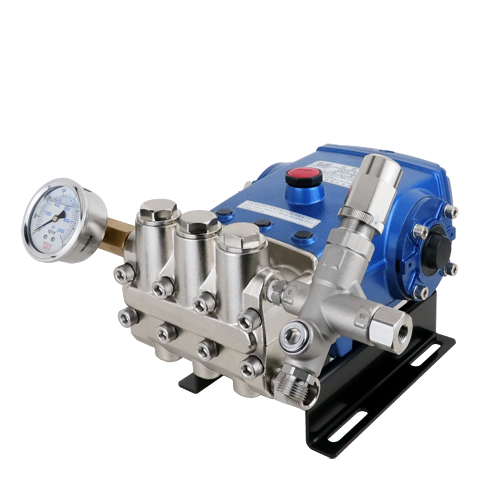

WH-3520F Industrial High Pressure Pump

250 Bar High Pressure Output for Industrial Cleaning and Equipment Maintenance Applications

WH-3520F is an industrial triplex plunger pump designed for high pressure cleaning and maintenance systems. With maximum working pressure of 250 Bar (3500 PSI) and flow rate of 19.7 L/min, this pump provides an excellent balance between high pressure performance and efficient water consumption.

It is widely used for industrial equipment cleaning, machinery maintenance, high pressure washing systems and various industrial cleaning applications. The powerful pressure output helps remove oil, dust, scale and production residues, improving cleaning efficiency and maintenance quality.

Featuring a triplex crankshaft driven structure, high-density ceramic plungers, precision forged crankshaft and durable sealing system, WH-3520F delivers stable pressure performance during continuous operation. The brass pump head design provides excellent durability and corrosion resistance for demanding industrial environments.

For equipment manufacturers, system integrators and industrial maintenance professionals requiring reliable high pressure performance with controlled water consumption, WH-3520F provides a dependable pumping solution for industrial cleaning machines, pressure washing equipment and OEM systems.

Product Features

3500 PSI High Pressure Cleaning Performance

Maximum working pressure reaches 250 Bar (3500 PSI), providing strong cleaning power for removing oil contamination, dirt, scale and industrial residues from equipment surfaces.

Industrial Triplex Crankshaft Design

The triplex plunger crankshaft structure provides stable operation, low pulsation and reduced vibration, helping extend pump service life under industrial working conditions.

High Density Ceramic Plunger

Ceramic plungers provide excellent wear resistance and durability, reducing maintenance frequency and improving long-term operating reliability.

Durable Brass Pump Head

The corrosion-resistant brass pump head design enhances durability and allows reliable operation in industrial cleaning environments.

Adjustable Pressure Control System

The adjustable pressure control design allows operators to optimize working pressure according to different equipment requirements and application conditions.

Technical Specifications

• Model: WH-3520F
• Maximum Working Pressure: 250 Bar (3500 PSI)
• Flow Rate: 19.7 L/min
• Required Power: 13 HP
• Speed: 1750 RPM
• Weight: 19.2 kg
• Dimension: 38 × 37 × 30 cm

Applications

WH-3520F is suitable for industrial applications requiring stable high pressure water output and continuous operation. It can be integrated into various cleaning systems and industrial equipment.

• Industrial equipment cleaning
• Machinery maintenance cleaning
• Food processing equipment cleaning
• Vehicle and transportation equipment washing
• Factory floor and production area cleaning
• High pressure washer manufacturing
• Industrial maintenance projects
• Pressure testing systems

Standard Accessories

WH-3520F is supplied with standard accessories for industrial high pressure system integration and installation.

• Pressure Gauge: Provides real-time pressure monitoring for safer operation.
• Safety Valve: Protects the system from excessive pressure conditions.
• 3/4" Inlet Hose Assembly (10 ft / 3 m): Provides stable water supply connection.
• Suction Filter: Filters impurities and protects internal pump components.
• 1/2" Overflow / Bypass Hose Assembly (9 ft / 2.7 m): Used for pressure release and water circulation applications.
• Pump pulley 4-1/2B2 × 24 × 8 for motor drive configuration.

Why Choose WH-3520F?

Compared with higher flow industrial pump models, WH-3520F focuses on high pressure cleaning efficiency and optimized water usage. With 250 Bar pressure capability, it provides a reliable balance between cleaning performance, energy efficiency and system load management.

It is an ideal choice for single gun high pressure cleaning equipment, industrial washing systems, maintenance equipment and OEM pressure washer applications.

Frequently Asked Questions

What applications is WH-3520F suitable for?

WH-3520F is suitable for industrial equipment cleaning, food processing equipment cleaning, pressure washing systems, maintenance projects and pressure testing applications.

Can WH-3520F operate continuously?

Yes. The industrial triplex crankshaft design and ceramic plunger structure are designed for stable operation under continuous working conditions.

What is the maximum pressure of WH-3520F?

The maximum working pressure is 250 Bar (3500 PSI) with a flow rate of 19.7 L/min.

What motor power is recommended for WH-3520F?

A 13 HP power source is recommended to achieve optimal performance and stable pressure output.

Can WH-3520F be used for food processing equipment cleaning?

Yes. It can be applied to food processing equipment cleaning and related industrial cleaning operations.

Can WH-3520F be used for pressure testing systems?

Yes. The 250 Bar pressure output can support various industrial pressure testing requirements depending on system design.

How to select the right industrial high pressure pump?

Pump selection should consider required pressure, flow rate, operating time, application environment and system requirements. WULI Pump can assist with professional pump selection and OEM system solutions.
