Power Sprayer
Enlarge
Enlarge

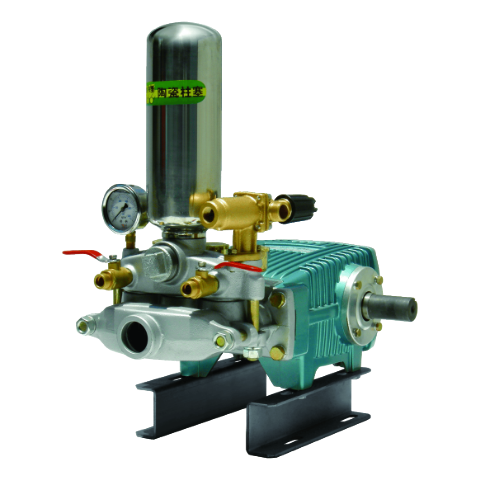

Model No : WL-160ASBC
Product Description

Pressure: 20~50 kgf/cm2 | Suction Volume: 78.5~182.5 L/Min.

Product Introduction
  • Spheroidal-graphite cast iron manifold with anti-rust surface treatment can withstand chemicals erosion and prolong service life.
  • Industrial ceramic pressure valve and valve seat privide stable pressure and durability.
  • Automatic pressure release device releases pressure to save energy when the spray gun is off.
  • Industrial ceramic piston sleeves are better resistant to corrosion, providing longer life and requiring minimal maintenance.
Export Standard Accessories:
  1. Pump Pulley 12B2*36*6
  2. Suction Hose Assy. 1-3/4"*10FT
  3. Overflow Hose Assy. 1"*9FT
  4. Inlet Filter & Filter Socket
  5. Tool Kits & Spare Parts
Suction Volume   (L/Min.)  Operating Pressure (kgf/cm2 Revolution  (r.p.m.)
20 35 50
 Motor   Engine   Motor   Engine   Motor   Engine
78.5 4.0 6.0 6.9 11.0 10.0 15.0 430
95.0 4.8 7.4 8.4 13.0 11.9 18.0 520
118.5 6.0 9.0 10.4 16.0 650
146.0 7.3 11.0 12.8 19.7 800
182.5 9.0 14.0     1000
Dimensions: 59x43x64 cm Weight: 50/51 kgs
Applications:
  • Power Spraying: Ideal for spraying agricultural chemicals and fertilizers on farms, greenhouses and orchards.
  • Water Transport: Capable of pumping liquids up to 3 km over flat ground, or 400 m at a 60 degree incline.
  • Irrigation: Provide water to crops in dry areas.
  • Disinfectant Spraying:  Used for spraying chemical disinfectant for sanitary applications.
