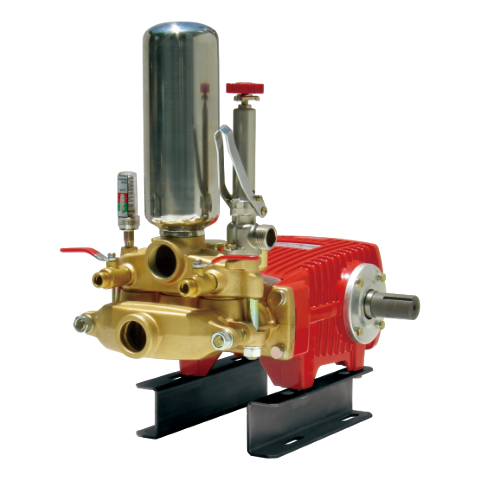

Model No : WL-160B
Product Description

Pressure: 20~50 kgf/cm2 | Suction Volume: 78.5~146 Liter/Minute

Product Introduction
  • Spheroidal-graphite cast iron manifold with anti-rust surface treatment can withstand chemicals erosion and prolong service life.
  • Industrial ceramic pressure valve and valve seat privide stable pressure and durability.
  • Stainless steel pistons with special surface treatment can endure the chemicals erosion.
Export Standard Accessories:
  1. Pump Pulley 12B2*36*6
  2. Suction Hose Assy. 1-3/4"*10FT
  3. Overflow Hose Assy. 1"*9FT
  4. Inlet Filter & Filter Socket
  5. Tool Kits & Spare Parts
Suction Volume
(L/Min.)
Working Pressure (kgf/cm2) Revolution
(r.p.m.)
20 35 50
HP kW HP kW HP kW
78.5 4.0 3.0 6.9 5.2 10.0 7.5 430
95.0 4.8 3.6 8.4 6.3 11.9 8.9 520
118.5 6.0 4.5 10.4 7.8 650
146.0 7.3 5.5 800
Dimensions: 59x43x64 cm Weight: 50/51 kgs
*THE SPECIFICATION IS SUBJECT TO CHANGE WITHOUT NOTICE FOR THE PURPOSE OF IMPROVEMENT OF THE PRODUCT.

proimages/product/POWER_SPRAYER/dimensions/WL-160.jpg

Applications:
  • Power Spraying: Ideal for spraying agricultural chemicals and fertilizers on farms, greenhouses and orchards.
  • Water Transport: Capable of pumping liquids up to 3 km over flat ground, or 400 m at a 60 degree incline.
  • Irrigation: Provide water to crops in dry areas.
  • Disinfectant Spraying:  Used for spraying chemical disinfectant for sanitary applications.
