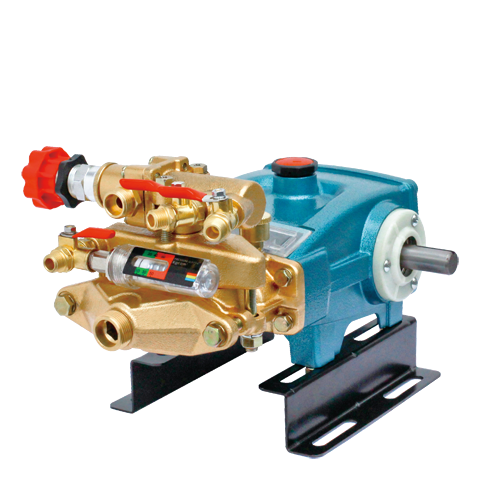

Power Sprayer
Product Description
Pressure: 20~50 kgf/cm2 | Suction Volume: 7.5~18 L/Min.
Product Introduction
- Spheroidal-graphite cast iron manifold with anti-rust surface treatment can withstand chemicals erosion and prolong service life.
- Industrial ceramic pressure valve and valve seat privide stable pressure and durability.
- Automatic pressure release device releases pressure to save energy when the spray gun is off.
- Industrial ceramic piston sleeves are better resistant to corrosion, providing longer life and requiring minimal maintenance.
- Pump Pulley 7A2*19*5
- Suction Hose Assy. 3/4"*9FT
- Overflow Hose Assy. 1/2"*9FT
- Inlet Filter & Filter Socket
- Tool Kits & Spare Parts
Specification
| Suction Volume (L/Min.) | Operating Pressure (kgf/cm2) | Revolution (r.p.m.) | |||||
| 20 | 35 | 50 | |||||
| Motor | Engine | Motor | Engine | Motor | Engine | ||
| 7.5 | 0.4 | 0.6 | 0.7 | 1.1 | 1.0 | 1.5 | 430 |
| 9.5 | 0.5 | 0.8 | 0.9 | 1.3 | 1.2 | 1.9 | 520 |
| 11.5 | 0.6 | 1.0 | 1.0 | 1.6 | 1.5 | 2.3 | 650 |
| 15.5 | 0.8 | 1.2 | 1.4 | 2.1 | 2.5 | 3.0 | 850 |
| 18.0 | 1.0 | 1.5 | 1.6 | 2.5 | 1000 | ||
| Dimensions: 36x28x32 cm | Weight: 12/13 kgs | ||||||
| Suction Volume (L/Min.) | Operating Pressure (kgf/cm2) | Revolution (r.p.m.) | |||||
| 20 | 35 | 50 | |||||
| Motor | Engine | Motor | Engine | Motor | Engine | ||
| 7.5 | 0.4 | 0.6 | 0.7 | 1.1 | 1.0 | 1.5 | 430 |
| 9.5 | 0.5 | 0.8 | 0.9 | 1.3 | 1.2 | 1.9 | 520 |
| 11.5 | 0.6 | 1.0 | 1.0 | 1.6 | 1.5 | 2.3 | 650 |
| 15.5 | 0.8 | 1.2 | 1.4 | 2.1 | 2.5 | 3.0 | 850 |
| 18.0 | 1.0 | 1.5 | 1.6 | 2.5 | 1000 | ||
| Dimensions: 36x28x32 cm | Weight: 12/13 kgs | ||||||
Applications:
- Power Spraying: Ideal for spraying agricultural chemicals and fertilizers on farms, greenhouses and orchards.
- Water Transport: Capable of pumping liquids up to 3 km over flat ground, or 400 m at a 60 degree incline.
- Irrigation: Provide water to crops in dry areas.
- Disinfectant Spraying: Used for spraying chemical disinfectant for sanitary applications.
