Grease Free Power Sprayer

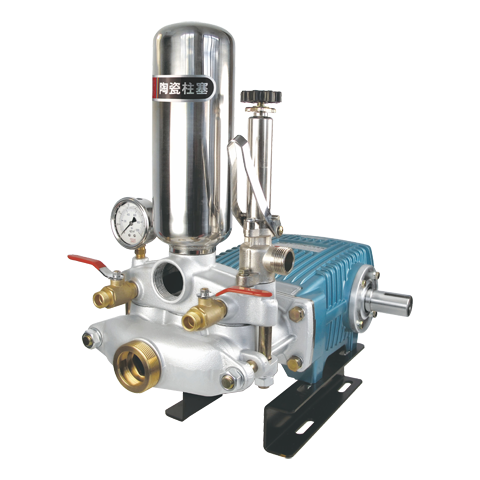

WL-5120C power sprayer ceramic plunger grease free high flow heavy duty high pressure pump
Enlarge
  • WL-5120C power sprayer ceramic plunger grease free high flow heavy duty high pressure pump
WL-5120C power sprayer ceramic plunger grease free high flow heavy duty high pressure pump
Enlarge
Model No : WL-5120C
Inquiry
Product Description

Pressure: 20~50 kgf/cm2 | Suction Volume: 78.5~182.5 L/Min.

Product Introduction
Grease-free power sprayer pumps leave no traces of oil on plants for healthier consumption; providing longer service life and requiring minimal maintenance.
  • Grease-free operation ensures pump reliability without the need to refill grease cups.
  • Unloading valve: stable output pressure despite changes in output volume.
  • Durable packings for longer product life and greater efficiency.
  • Industrial ceramic pressure valve and valve seat.
  • Spheroidal-graphite cast iron manifold with anti-rust surface treatment.
  • Special packing design: durable for longer product life and greater efficiency.
  • Industrial ceramic piston sleeves.
Export Standard Accessories:
  1. Pump Pulley 12B2*36*6
  2. Suction Hose Assy. 1-3/4"*10FT
  3. Overflow Hose Assy. 1"*9FT
  4. Inlet Filter & Filter Socket
  5. Tool Kits & Spare Parts
Suction Volume
(L/Min.)		 Working Pressure (kgf/cm2) Revolution
(r.p.m.)
20 35 50
HP kW HP kW HP kW
78.5 4.0 3.0 6.9 5.2 10.0 7.5 430
95.0 4.8 3.6 8.4 6.3 11.9 8.9 520
118.5 6.0 4.5 10.4 7.8 650
146.0 7.3 5.5 12.8 9.6 800
182.5 9.1 6.8 1000
Dimensions: 59x43x64 cm Weight: 50/51 kgs
*THE SPECIFICATION IS SUBJECT TO CHANGE WITHOUT NOTICE FOR THE PURPOSE OF IMPROVEMENT OF THE PRODUCT.

WL-5120C power sprayer dimensions drawing

Applications:
  • Power Spraying: Ideal for spraying agricultural chemicals and fertilizers on farms, greenhouses and orchards.
  • Water Transport: Capable of pumping liquids up to 3 km over flat ground, or 400 m at a 60 degree incline.
  • Irrigation: Provide water to crops in dry areas.
  • Disinfectant Spraying:  Used for spraying chemical disinfectant for sanitary applications.
power sprayer used for agricultural spraying and pig farm cleaning operations
power sprayer optional accessories including spray hose filter flat frame belt guard pressure gauge and coupling
power sprayer optional accessories including various spray guns
power sprayer optional accessories including connector, nozzle, ball cock and union
