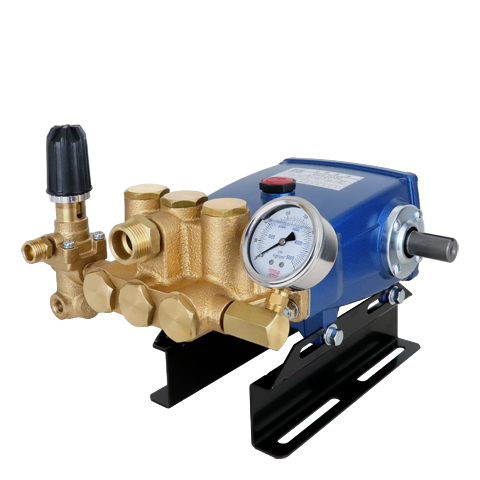

WH-1038 High Pressure Misting & Cooling Plunger Pump

The WH-1038 is a high-performance industrial plunger pump designed for large-area mist cooling and environmental temperature reduction applications. Delivering high-volume water flow with stable 70 Bar pressure output, the system produces ultra-fine mist particles for rapid evaporative cooling while keeping floors and surrounding areas dry.

• Flow Capacity: 38 L/min
• Maximum Pressure: 70 Bar
• Pump Type: Triplex Plunger Pump
• Designed for Industrial Misting & Cooling Systems
• Large Water Volume for Wide Coverage Cooling

The WH-1038 is ideal for outdoor cooling systems, factory ventilation, greenhouse cooling, livestock farms, amusement parks, warehouse cooling, dust suppression, and large-scale commercial misting installations.

Manufactured by WULI, specializing in industrial high-pressure plunger pumps and professional misting system solutions.

Performance Specifications

• Rated Flow: 38 L/min
• Maximum Pressure: 70 Bar
• Pump Structure: Triplex Plunger Design
• Application: High Pressure Fogging & Cooling
• Operation: Continuous Industrial Duty

Key Features

• High-pressure 70 Bar output for ultra-fine mist atomization
• Large water flow supports wide-area cooling coverage
• Efficient evaporative cooling without excessive surface wetting
• Stable pressure delivery for consistent mist quality
• Heavy-duty plunger structure for long operating life
• Suitable for continuous operation in hot outdoor environments
• Reduces ambient temperature and improves ventilation comfort
• Compatible with industrial fogging and misting nozzle systems

Industrial Cooling Performance

The WH-1038 generates high-pressure micro mist particles that evaporate rapidly in the air, effectively lowering surrounding temperatures without soaking floors or equipment.

Compared to conventional low-pressure spray systems, high-pressure misting technology creates significantly finer droplets, resulting in faster evaporation, better cooling efficiency, and reduced water consumption.

Its high-volume flow capacity allows the WH-1038 to support large-scale cooling systems across factories, outdoor venues, warehouses, and agricultural environments.

Custom Misting System Planning Support

WULI not only provides high-pressure misting pumps, but also offers complete mist cooling system planning and customization services.

Simply provide your required nozzle quantity, installation area, cooling target, or system layout drawing, and our engineering team can assist with complete system configuration and pressure planning.

• Customized nozzle quantity and piping configuration
• Large-area cooling system planning
• Pressure and flow matching calculation
• Fogging line and nozzle arrangement recommendations
• Support for OEM / ODM cooling system projects
• One-stop industrial misting solution integration

From pump selection to full misting system integration, WULI helps customers achieve efficient cooling performance with a complete turnkey solution.

Export Standard Accessories

Each WH-1038 pump package includes essential export-standard accessories for fast installation and reliable field operation.

• Pressure gauge for real-time system pressure monitoring
• Unloader valve to regulate working pressure and release pressure during idle, protecting the pump from overload
• 1" suction hose (10 ft / 3 m) for stable water intake
• Inlet suction filter with filter socket to prevent particulate contamination
• 1/2" overflow / bypass hose (9 ft / 2.7 m) for system pressure return flow
• Pump pulley 10B2*24*5 for mechanical power transmission and motor coupling

These standard accessories help simplify installation, improve operational stability, and reduce additional setup requirements for industrial cooling and misting systems.

Applications

• Industrial mist cooling systems
• Outdoor cooling and patio misting
• Factory and warehouse temperature reduction
• Livestock farm cooling systems
• Greenhouse environmental control
• Dust suppression and air quality improvement
• Commercial fogging systems
• Theme parks and public outdoor cooling areas

Industries Served

• Industrial Manufacturing
• Agriculture & Livestock Farming
• Greenhouse Cultivation
• Warehouse & Logistics Facilities
• Commercial Outdoor Spaces
• Hospitality & Recreation Venues
• Environmental Dust Control Systems

Technical Overview

The triplex plunger mechanism provides stable pressure output with low pulsation, ensuring smooth mist generation and reliable operation under continuous-duty conditions.

Combined with high-pressure misting nozzles, the WH-1038 produces fine atomized droplets optimized for evaporative cooling efficiency and large-area environmental temperature control.

Frequently Asked Questions

Can this pump create fine mist without wetting the ground?

Yes. The 70 Bar high-pressure output generates ultra-fine mist particles that evaporate quickly in the air, greatly reducing floor wetting compared to low-pressure spray systems.

Is the WH-1038 suitable for large-area cooling?

Yes. Its 38 L/min large flow capacity makes it suitable for factories, warehouses, farms, and large outdoor cooling installations.

Can the pump operate continuously during hot weather?

Yes. The WH-1038 is designed for continuous industrial-duty operation in demanding outdoor and high-temperature environments.

Can WULI help design a complete misting system?

Yes. WULI provides full system design support, including pump selection, nozzle configuration, and complete turnkey misting system solutions.

Do you support OEM / ODM customization?

Yes. WULI provides OEM / ODM support for industrial cooling pumps, misting systems, and custom high-pressure fluid solutions.
