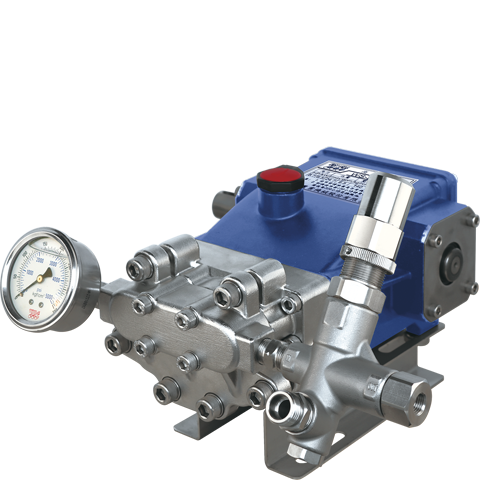

WS-1035F1 Industrial High Pressure Plunger Pump

The WS-1035F1 is designed for equipment manufacturers, agricultural machinery builders, system integrators, and global industrial buyers requiring a robust high-pressure pumping solution. It delivers strong pressure output, stable flow performance, and long service life under continuous heavy-duty operation.

Key Advantages

• Maximum pressure: 80 kg/cm² / 80 bar / 1100 psi
• Flow rate: 35.9 L/min
• 316 stainless steel cylinder for corrosion resistance
• High-density ceramic plungers for extended wear life
• Integrated recirculation cooling and lubrication system
• Low-noise valve design for smoother operation
• Optimized structure for easier maintenance and servicing
• Suitable for continuous industrial-duty operation
• Stable high-pressure output for precision spraying systems

Industries & Applications

• Industrial high-pressure cleaning systems
• Factory equipment washing solutions
• Agricultural spraying machinery
• Misting and evaporative cooling systems
• High-pressure fluid transfer systems
• OEM / custom system integration projects

Technical Specifications

• Model: WS-1035F1
• Maximum Pressure: 80 kg/cm²
• Flow Rate: 35.9 L/min
• Inlet Port: PF 3/4"
• Outlet Port: PT 1/4"
• Bypass / Overflow Port: PF 1/2"

Standard Accessories

• Pressure gauge for real-time system pressure monitoring
• Safety valve to automatically release excess pressure to protect the pump and piping system from overpressure damage

Standard accessories can be adjusted according to application requirements and system integration needs, helping to simplify installation, improve system stability, and reduce additional procurement costs.

Why Choose WULI?

• Manufactured in Taiwan with strict quality control for industrial applications
• Stable long-term supply for bulk and OEM orders
• Full OEM / ODM customization capability
• Export-ready documentation and international support
• Professional technical service and after-sales support
• Durable design reduces maintenance and lifecycle cost

Frequently Asked Questions

Q1: Can this pump run continuously?

Yes. It is equipped with a recirculation cooling and lubrication system, making it suitable for continuous-duty industrial operation.

Q2: Can customized specifications be provided?

Yes. Motor power and system configuration can be customized based on specific application requirements.

Q3: Can standard accessories be modified?

Yes. Accessories can be adjusted according to application needs. Any changes will be reflected in the final quotation.

Q4: Do you support small orders or long-term supply?

Yes. There is no minimum order quantity (MOQ). We provide stable long-term supply, suitable for equipment manufacturers and system integrators.
