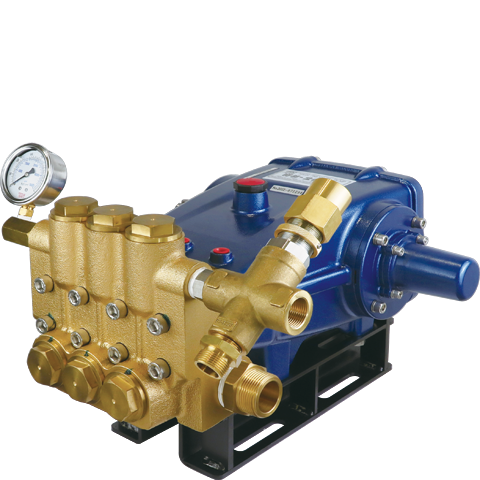

WH-2075 High Flow Industrial Plunger Pump

WH-2075 is an industrial-grade high flow plunger pump engineered for continuous-duty operation in demanding industrial environments. It is suitable for industrial cleaning systems, mist cooling systems, dust suppression applications, pressure testing systems, and automatic spraying equipment.

Performance Specifications

• Maximum Pressure: 2000 PSI (140 bar)
• Flow Rate: 74.5 L/min
• High-flow industrial pumping design
• Continuous-duty industrial operation

Product Features

• High-flow 74.5 L/min output design suitable for large industrial spraying and cleaning systems.
• Stable high-pressure output ensures reliable pressure and flow performance during continuous operation.
• High-density ceramic plungers provide exceptional wear resistance and long service life under high-pressure conditions.
• Corrosion-resistant brass manifold improves durability and operational stability in industrial environments.
• High-strength aluminum crankcase combined with precision forged crankshaft improves mechanical rigidity and transmission efficiency.
• High-precision sealing system minimizes leakage risk and maintains stable high-pressure operation.
• Designed for industrial system integration including cleaning, spraying, cooling, and fluid transfer applications.

Engineering Advantages

The WH-2075 is designed with industrial-grade triplex plunger pump architecture optimized for high-flow and continuous-duty applications. Its robust mechanical structure improves system stability, reduces maintenance frequency, and extends operational service life in demanding industrial environments.

It is ideal for OEM manufacturers, industrial system integrators, and fluid handling applications requiring stable high-pressure and high-volume performance.

Applications

• Industrial high-pressure cleaning systems
• Large-scale mist cooling systems
• Dust suppression and odor control systems
• Automatic spraying and atomization systems
• Livestock and greenhouse humidification systems
• Steel plant and heavy equipment cleaning systems
• Pipeline and pressure vessel testing systems
• Industrial fluid circulation and transfer systems

Engineering Benefits

The WH-2075 is optimized for continuous-duty industrial operation, delivering stable pressure output, reduced maintenance requirements, and reliable long-term performance for demanding industrial applications.

Standard Accessories

• Pressure gauge for real-time high-pressure system monitoring and operational safety.
• Safety valve to automatically release excess pressure to protect the pump and piping system from overpressure damage
• 1-1/4" suction hose (10 ft / 3 m) for stable high-flow water supply.
• Inlet suction filter assembly to reduce contamination and protect internal pump components.
• 3/4" overflow / bypass hose (9 ft / 2.7 m) for stable pressure return circulation.
• Pump pulley 10B3*35*10 designed for industrial motor power transmission systems.

The standard accessory package supports fast industrial installation and system integration requirements, reducing on-site setup complexity while improving overall system stability and long-term operational reliability.

FAQ

Is the WH-2075 suitable for mist cooling systems?

Yes. The high-flow 74.5 L/min output makes it suitable for medium and large-scale mist cooling and outdoor cooling systems.

Can the WH-2075 operate continuously?

Yes. The industrial-grade structure and wear-resistant materials are designed for continuous-duty operation.

Can it be used in industrial cleaning applications?

Yes. It is suitable for industrial surface cleaning, heavy equipment cleaning, and high-pressure washing systems.

Do you provide OEM / ODM customization?

Yes. OEM / ODM customization and industrial system integration support are available.
